Timing Chains for Motorcycle Engine

Request a Quote

Looking for chains of quality, precision and low noise? Look no further than Hengjiu’s Timing chains for motorcycle engine! They are reliable and quality partners of motorcycles, improving performances and reducing risks in the face of bumpy road or long ride ahead. With optimum durability, Hengjiu’s Timing chains are recommended for any kinds of motorcycles, especially perfect for off-road motorcycles.

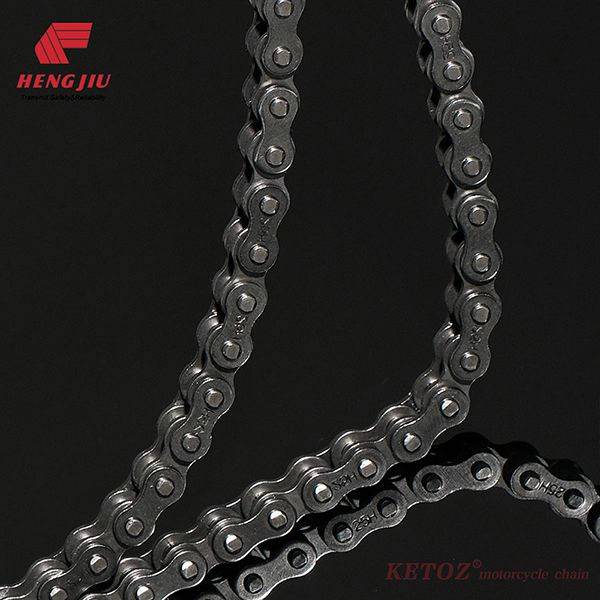

Specifications of Timing Roller Chain

Inquiry

DIN ISO Chain No.	Pitch	Bush type	Roller max mm	Width min mm	Pin Dia max mm	Thickness Outer mm	h2 max mm	Pin max mm	Tensile KN	Weight kg/m
DIN ISO Chain No.	mm	Bush type	Roller max mm	Width min mm	Pin Dia max mm	Thickness Outer mm	h2 max mm	Pin max mm	Tensile KN	Weight kg/m
25	6.350	Curled	7.80	3.10	3.30	3.50	5.90	2.31	4.20	0.14
25H	6.350	Curled	9.00	3.10	3.30	4.80	5.90	2.31	5.20	0.18
05H-1	8.000	Curled	11.40	4.60	4.59	7.80	7.60	3.05	8.20	0.38
06BH	9.525	Curled	10.60	3.84	6.35	7.00	8.20	3.28	9.50	0.35
35-1	9.525	Curled	12.15	4.77	5.08	7.90	8.95	3.58	9.80	0.33
06B-1	9.525	Curled	13.20	5.72	6.35	8.90	8.20	3.28	10.00	0.41

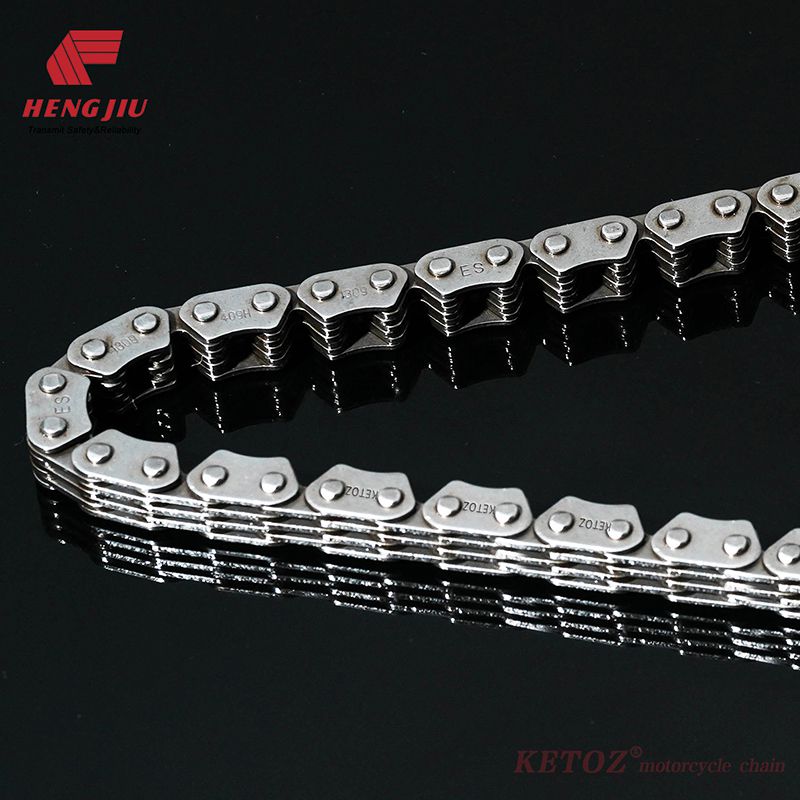

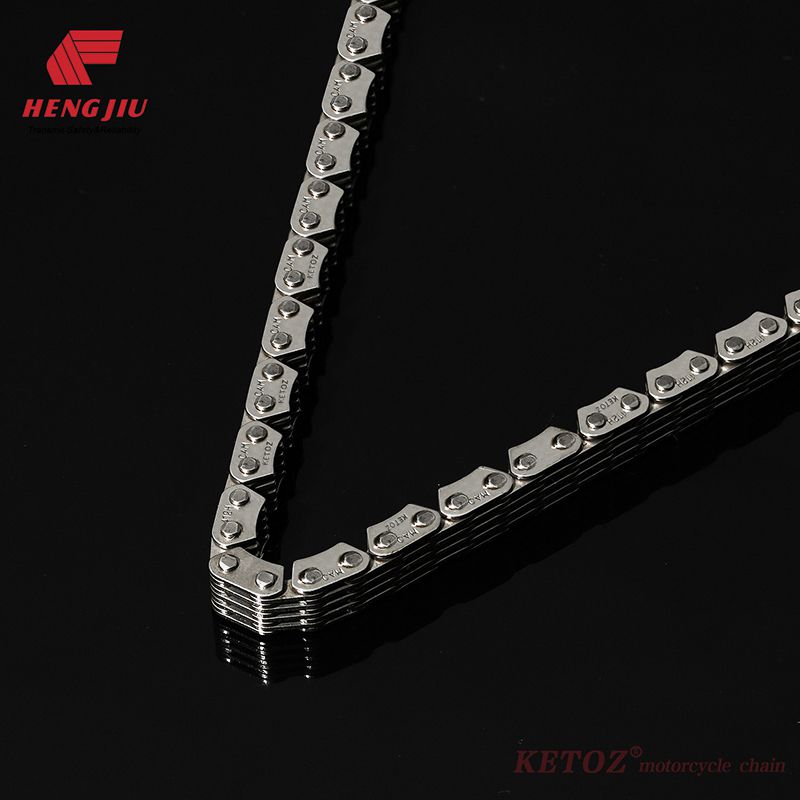

Specifications of Timing Tooth Chain

Inquiry

Chain No.	Pitch	Pin Dia mm	Distance from hole to tooth	Width min mm	Plate Depth mm	Plate Thickness mm	Number or Plates	Pin max mm	U.T.S KN	A.T.S KN	Weight kg/m
Chain No.	mm	Pin Dia mm	Distance from hole to tooth	Width min mm	Plate Depth mm	Plate Thickness mm	Number or Plates	Pin max mm	U.T.S KN	A.T.S KN	Weight kg/m
CL04A2X3	6.35	2.7-2.52	3.92	3.10	6.72	1.03/0.8	5	6.20	5.00	5.50	0.173
CL04A3X4	6.35	2.7-2.52	3.92	5.18	6.72	1.03/0.8	7	8.40	7.60	8.20	0.248
CL04A4X5	6.35	2.7-2.52	3.92	7.25	6.72	1.03/0.8	9	11.00	9.50	10.50	0.340

Ever since foundation, innovation and high quality have been our main focus and pride as a leading company in manufacturing and developing motorcycle chains and industrial chains. Made of premium alloy (45Mn, 20Mn, 30CrMnTi, M10) in high-precision molds, our chains have gone through rigorous heat treatment and comprehensive quality control. Coupled with fully automated production line and technical team with extensive knowledge, our motorcycle chains and industrial chains are in parallel with the chains from top manufacturers in core indexes such as initial elongation, fatigue resistance and tensile strength.
